Opinions on eVGA e-GeForce 6800 GS Graphics Card

Graphics Cards, Sound Cards, Joysticks, Computers, etc. Ask or advise here!

Opinions on eVGA e-GeForce 6800 GS Graphics Card

Postby senorbandana » Tue Jan 31, 2006 7:39 pm

I've seen good reviews on the eVGA e-GeForce 6800 GS Graphics Card at PriceGrabber and at PCWorld.com . For around $185 it seems like a good deal. Has anyone here had experience with this adapter?

The card would be going into an eMachines T6212. It has an AMD Athlon 3200+ processor and 1.5GB of PC3200 RAM.

The sims that would be run most often are MSFS 2004 and Silent Hunter.

Will appreciate any feedback pro or con.

Cal
senorbandana
Ground hog
Ground hog

Posts: 7
Joined: Mon Jan 30, 2006 3:30 pm

Re: Opinions on eVGA e-GeForce 6800 GS Graphics Ca

Postby ctjoyce » Tue Jan 31, 2006 8:40 pm

Well that card will work in your setup, just make sure you get the appropriate interface. But other than that, good choice in card, and company. I suggest www.newegg.com though. Theres a free 3 day shipping sale going on.

Cheers
Cameron
CTJoyce, Modding and voiding warranties since 2003
Sheila's Specs:ASUS Striker Extreme 680i, Intel Core 2 Duo E6600 @ 3.2Ghz, Corsair XMS2 PC2-6400C4 2GB, 2x eVGA 7900GT KO,  Western Digital 80GB SATA & 250GB SATAIII
[b]Vesp
User avatar
ctjoyce
Major
Major

Posts: 3820
Joined: Wed Feb 09, 2005 4:42 pm
Location: USA

Re: Opinions on eVGA e-GeForce 6800 GS Graphics Ca

Postby senorbandana » Tue Jan 31, 2006 9:39 pm

Thanks, Cameron.

The machine has the PCI-Express slot.

I'll check out newegg as suggested.

Cal
senorbandana
Ground hog
Ground hog

Posts: 7
Joined: Mon Jan 30, 2006 3:30 pm

Re: Opinions on eVGA e-GeForce 6800 GS Graphics Ca

Postby congo » Thu Feb 02, 2006 10:43 am

It has an AMD Athlon 3200+ processor and 1.5GB of PC3200 RAM.


That chipset supports Dual Channel RAM, so it needs two or four similar modules with equal size on each channel. 1.5gb of ram must be running in single channel mode, thus reducing performance from a dual channel, 1gb setup. Quite possibly, one of the ram sticks is a slower spec, further reducing performance by reducing the speed of all ram on the system.
Last edited by congo on Thu Feb 02, 2006 10:45 am, edited 1 time in total.
ImageMainboard: Asus P5K-Premium, CPU=Intel E6850 @ x8x450fsb 3.6ghz, RAM: 4gb PC8500 Team Dark, Video: NV8800GT, HDD: 2x1Tb Samsung F3 RAID-0 + 1Tb F3, PSU: Antec 550 Basiq, OS: Win7x64, Display: 24&
User avatar
congo
Major
Major

Posts: 3655
Joined: Fri Aug 16, 2002 12:13 am
Location: Australia

Re: Opinions on eVGA e-GeForce 6800 GS Graphics Ca

Postby senorbandana » Thu Feb 02, 2006 1:43 pm

That chipset supports Dual Channel RAM, so it needs two or four similar modules with equal size on each channel.

Congo,

The PC came with a pair of 256MB modules. We added a pair of 512MB modules. I had thought only the pairs had to be matched, not all four banks. Do you suggest we remove the original RAM?

Cal
senorbandana
Ground hog
Ground hog

Posts: 7
Joined: Mon Jan 30, 2006 3:30 pm

Re: Opinions on eVGA e-GeForce 6800 GS Graphics Ca

Postby 4_Series_Scania » Fri Feb 03, 2006 1:40 pm

Congo,

The PC came with a pair of 256MB modules. We added a pair of 512MB modules. I had thought only the pairs had to be matched, not all four banks. Do you suggest we remove the original RAM?

Cal



I think he probably does. However, the performance difference between dual cahnnel & non dual channel is small, you'll gain more from more non-dual channel RAM than you will by having less RAM, running in dual channel mode.

Ideally, change so all the RAM banks match, but, as you won't find 2 512MB sticks that'll exactly match 2 256MB sticks, then I'd say your stuck with what you've got.

You could always solve the problem by matching the 2 new 512Sticks with 2 more identical 512sticks, replacing the 2 256MB ones, that would be my move.  ;)

The 6800GS is a great card, as fast as the 6800GT but cheaper!

http://www.overclockers.co.uk/acatalog/ ... eries.html

;)
Last edited by 4_Series_Scania on Fri Feb 03, 2006 1:42 pm, edited 1 time in total.
Posting drivel here since Jan 31st, 2002. - That long!
"He who laughs last, thinks slowest."
User avatar
4_Series_Scania
Major
Major

Posts: 3194
Joined: Thu Jan 31, 2002 4:34 pm
Location: Newport Shropshire U.K.

Re: Opinions on eVGA e-GeForce 6800 GS Graphics Ca

Postby senorbandana » Fri Feb 03, 2006 9:06 pm

You could always solve the problem by matching the 2 new 512Sticks with 2 more identical 512sticks, replacing the 2 256MB ones, that would be my move.

The 6800GS is a great card, as fast as the 6800GT but cheaper!

Thanks, 4SS,

We're going to concentrate on the graphics card for now. I think that's where our performance bottleneck is at this point. We'll tinker with the RAM later if it looks like performance is still suffering. I appreciate the schooling you guys provide.

Cal
senorbandana
Ground hog
Ground hog

Posts: 7
Joined: Mon Jan 30, 2006 3:30 pm

Re: Opinions on eVGA e-GeForce 6800 GS Graphics Ca

Postby congo » Sat Feb 04, 2006 1:31 am

I goofed, I thought you had 3 sticks.

256 : 512 channel 1       256 : 512 channel 2

768mb each channel, may well be just fine and dandy, you'll have to verify it in your manual.
ImageMainboard: Asus P5K-Premium, CPU=Intel E6850 @ x8x450fsb 3.6ghz, RAM: 4gb PC8500 Team Dark, Video: NV8800GT, HDD: 2x1Tb Samsung F3 RAID-0 + 1Tb F3, PSU: Antec 550 Basiq, OS: Win7x64, Display: 24&
User avatar
congo
Major
Major

Posts: 3655
Joined: Fri Aug 16, 2002 12:13 am
Location: Australia

Re: Opinions on eVGA e-GeForce 6800 GS Graphics Ca

Postby 4_Series_Scania » Sun Feb 05, 2006 10:49 am

I goofed, I thought you had 3 sticks.

256 : 512 channel 1       256 : 512 channel 2

768mb each channel, may well be just fine and dandy, you'll have to verify it in your manual.


He'll have to check, alas, for example, on both my previous p4 and my current AMD setups neither would allow dual channel if different cappacity DIMMS were used, they had to be 2 x256 or 4 x256 256+512 on each channel would give 1536MB but in single channel mode only.
For this reason, I have to ditch my 4x 256MB sticks when I upgrade to 2GB RAM.  (I'd planned to buy a single 2GB stick and have a total of 2.5GB - Ho hum!  ::)
Posting drivel here since Jan 31st, 2002. - That long!
"He who laughs last, thinks slowest."
User avatar
4_Series_Scania
Major
Major

Posts: 3194
Joined: Thu Jan 31, 2002 4:34 pm
Location: Newport Shropshire U.K.

Re: Opinions on eVGA e-GeForce 6800 GS Graphics Ca

Postby senorbandana » Sun Feb 05, 2006 10:59 am

768mb each channel, may well be just fine and dandy, you'll have to verify it in your manual.

Thanks, Congo. That was my understanding about matching dual channel memory.

The eMachines User Guide doesn't even provide that minor detail. Kingston's website is more helpful than the manual.

Per 4SS's latest input, we'll check into the RAM issue further if we get disappointing performance from the new graphics adapter.

Cal
senorbandana
Ground hog
Ground hog

Posts: 7
Joined: Mon Jan 30, 2006 3:30 pm

Re: Opinions on eVGA e-GeForce 6800 GS Graphics Ca

Postby senorbandana » Sun Feb 05, 2006 11:20 am

He'll have to check, alas, for example, on both my previous p4 and my current AMD setups neither would allow dual channel if different cappacity DIMMS were used, they had to be 2 x256 or 4 x256 256+512 on each channel would give 1536MB but in single channel mode only.

Thanks, 4SS.

Once we get that PC here and on the bench I'll see if I can figure out whether the currently installed RAM is running in single or dual channel mode. Would that be specified on the General tab in System Properties, or do I need to look somewhere else?

Cal
senorbandana
Ground hog
Ground hog

Posts: 7
Joined: Mon Jan 30, 2006 3:30 pm

Re: Opinions on eVGA e-GeForce 6800 GS Graphics Ca

Postby 4_Series_Scania » Sun Feb 05, 2006 9:06 pm

Thanks, 4SS.

Once we get that PC here and on the bench I'll see if I can figure out whether the currently installed RAM is running in single or dual channel mode. Would that be specified on the General tab in System Properties, or do I need to look somewhere else?

Cal

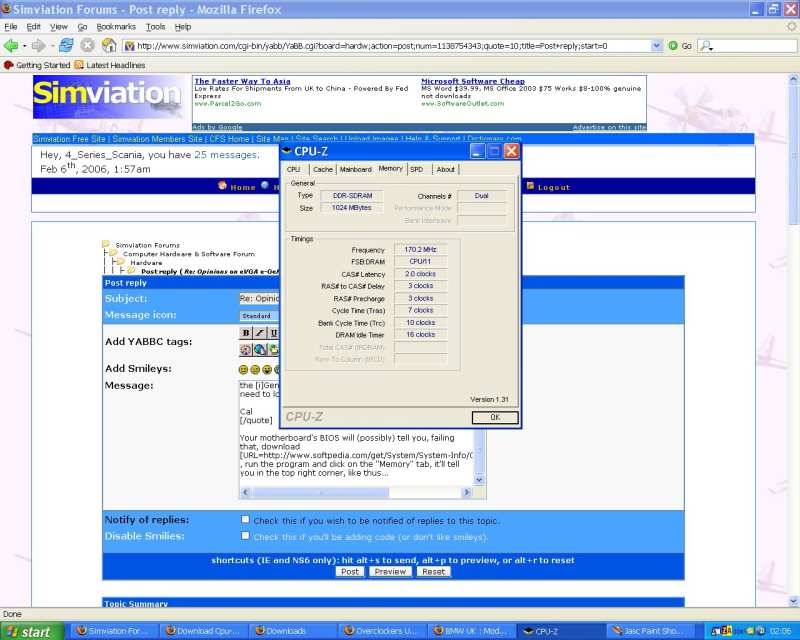

Your motherboard's BIOS will (possibly) tell you, failing that, download CPU-Z
, run the program and click on the "Memory" tab, it'll tell you in the top right corner, like thus...

  ;)
Posting drivel here since Jan 31st, 2002. - That long!
"He who laughs last, thinks slowest."
User avatar
4_Series_Scania
Major
Major

Posts: 3194
Joined: Thu Jan 31, 2002 4:34 pm
Location: Newport Shropshire U.K.

Re: Opinions on eVGA e-GeForce 6800 GS Graphics Ca

Postby senorbandana » Tue Feb 07, 2006 9:33 am

[quote]Your motherboard's BIOS will (possibly) tell you, failing that, download CPU-Z, run the program and click on the "Memory" tab, it'll tell you in the top right corner.
senorbandana
Ground hog
Ground hog

Posts: 7
Joined: Mon Jan 30, 2006 3:30 pm
