Apologies ahead for the weird sizing (very wide one for the switch block), but all shots whitin limits

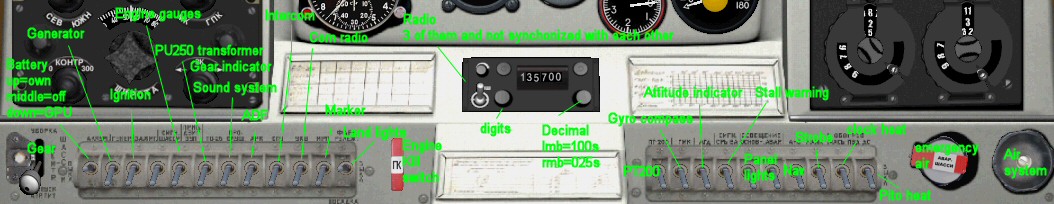

Switches
Shift-numpad 2 from the main view
Radio is also on Shift-2 and shift-3 popup and doesnt react to the atc dialin thing

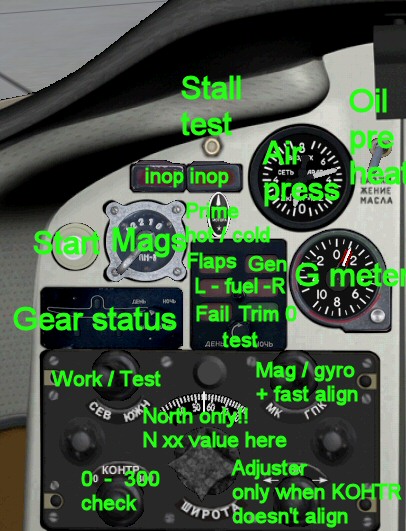

Left panel: standard view
You need at least 40% rpm for the generator to catch on

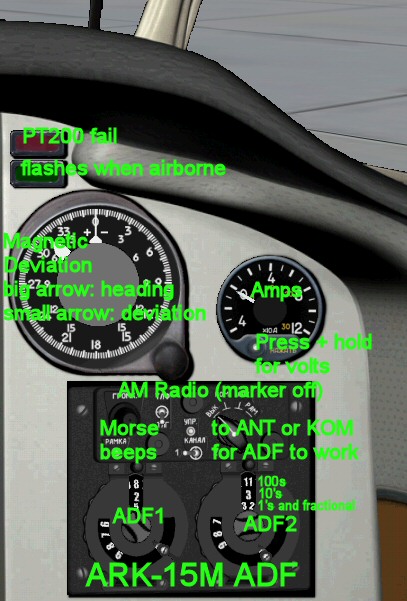

Right panel: shift-num5.
This is where the ADF lives

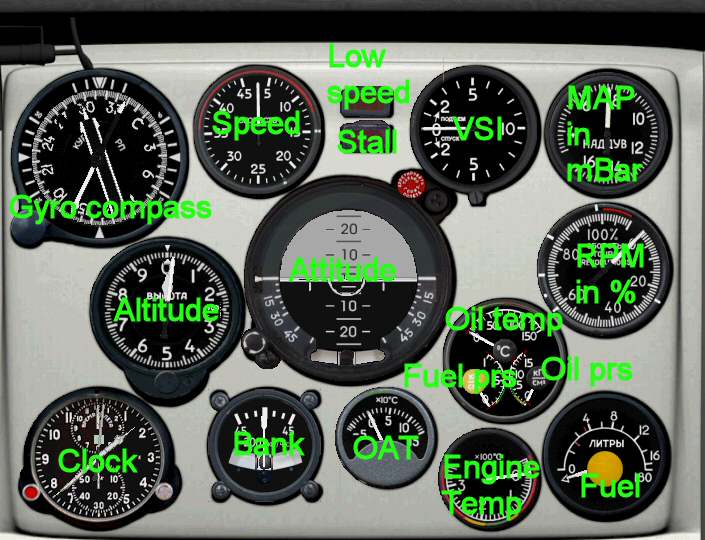

Main panel
ADF is in same gauge as the gyro compass (closed arrow). moves around when the station is out of range.
Big knob on left bottom of the gyrocompass moves the heading bug (open arrow)
Watch that engine temperature gauge: 280C = fail light and it stops
Eco Climb + max cruise: max throtle, 70%RPM
Eco Cruise: rpm down until it drops no more, then adjust throttle to get it at 60%
