RAF's new ASTOR a/c the Sentinel R1

Postby alexcolbeck » Sun Mar 27, 2005 5:17 pm

Someone make a model of thes a/c for fs2004, it would be wicked!

alexcolbeck
Ground hog
Ground hog

Posts: 6
Joined: Thu Mar 24, 2005 1:47 pm

Re: RAF's new ASTOR a/c the Sentinel R1

Postby beaky » Sun Mar 27, 2005 9:35 pm

Nifty-looking. What's with all the extra bulges- or is it all top secret?
User avatar
beaky
Global Moderator
Global Moderator

Posts: 12877
Joined: Thu Dec 16, 2004 8:00 am
Location: Shenandoah, PA USA

Re: RAF's new ASTOR a/c the Sentinel R1

Postby Hagar » Mon Mar 28, 2005 3:47 am

This is the first time I've heard of this. Not surprising as I lost touch with the latest military developments years ago. According to this site the name ASTOR is an acronym for AIRBORNE STAND-OFF RADAR. http://www.airforce-technology.com/projects/astor/

AIRCRAFT

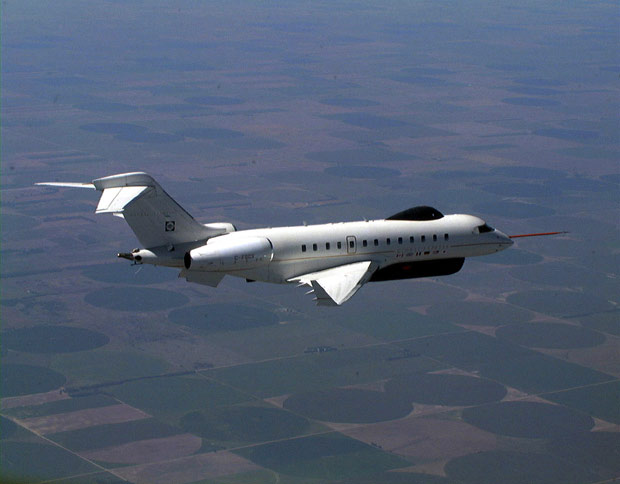

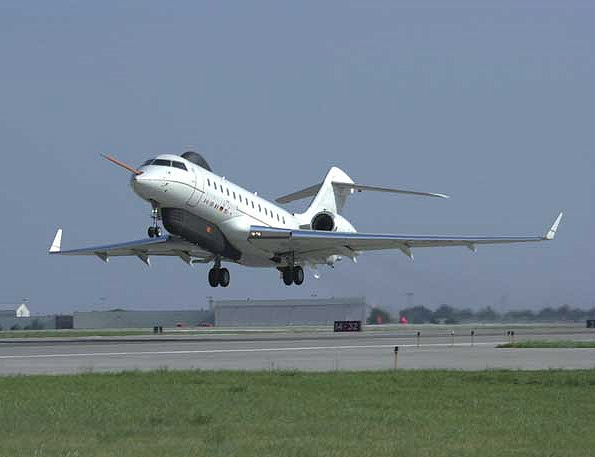

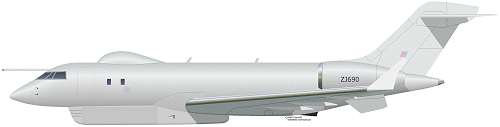

The aircraft will be flown by two flight deck crew and three mission crew. The Bombardier Aerospace-Short Brothers Global Express aircraft is an ultra-long range business jet and will be modified to accommodate the radars and communications systems required by ASTOR. The modifications include a canoe-shaped radome under the forward fuselage to house the radar antenna, a radome on the upper fuselage to house the SATCOM antenna, a "bullet-fairing"extension on the vertical stabiliser and delta fins under the aft fuselage. Aircraft modification, systems integration and flight testing will be carried out by Raytheon Systems at Broughton, North Wales.

ENGINE

The engines for the ASTOR aircraft are the same as those deployed on the UK RAF Nimrod MRA4 aircraft. Each Rolls-Royce BR710 two-shaft turbofan engine produces 14,000 to 17,000 lbf (63 to 76 kN) flat rated take-off thrust.

RADAR

The radar is an upgrade of the Raytheon ASARS-2 side looking airborne radar used on the U-2. The radar operates at high altitude and in all weathers to provide high resolution images. The antenna systems are supplied by BAE Systems, Edinburgh. ASARS-2 has been reported to provide images of the battlefield at ranges of 160 km, at altitudes up to 47,000 feet.

The ASARS-2 derivative has an active scanned array and includes a synthetic aperture radar (SAR) which provides photographic quality images of the area being surveyed and a moving target indicator (MTI radar) which tracks moving vehicles over wide ranges.

The SAR operates in spot mode to identify and track specific targets or can be switched to swath mode which provides a large number of strips of pictures which join to form a detailed image of the battlefield.

Sounds like another typical bodge to me. Instead of designing an aircraft specifically for the purpose they convert an existing one & add all sorts of bits & pieces it was never intended for. I just hope it turns out better than the various Nimrod projects which, apart from the successful MR2, have cost unknown millions with very little to show for it.
Last edited by Hagar on Mon Mar 28, 2005 3:48 am, edited 1 time in total.

Founder & Sole Member - Grumpy's Over the Hill Club for Veteran Virtual Aviators
Member of the Fox Four Group
My Google Photos albums
My Flickr albums
User avatar
Hagar
Colonel
Colonel

Posts: 30868
Joined: Wed Jun 19, 2002 7:15 am
Location: Costa Geriatrica

Re: RAF's new ASTOR a/c the Sentinel R1

Postby C » Mon Mar 28, 2005 6:41 am

In simple terms, its the UKs equivalent of this...

Boeing E-8C JSTARS, first deployed as a development aircraft in 1991 Gulf War.

Should be seeing the first aircraft with 5 (AC) Sqn at RAF Waddington later this year. Aircrew will be RAF, the rear crew will be a mix of RAF and Army.

Charlie
Last edited by C on Mon Mar 28, 2005 6:43 am, edited 1 time in total.
User avatar
C
Colonel
Colonel

Posts: 11977
Joined: Mon May 19, 2003 1:04 pm
Location: Earth

Re: RAF's new ASTOR a/c the Sentinel R1

Postby Fitter » Mon Mar 28, 2005 10:00 am

Its similar to the R-99. USAF will use a version of the r-99
Fitter
Major
Major

Posts: 4204
Joined: Sat Nov 29, 2003 3:15 pm
Location: Earth
