AAM part 7-cockpits, sims- part 1 of 3

[beaky]

Amongst the clutter can be found some excellent nose-sections and simulators.

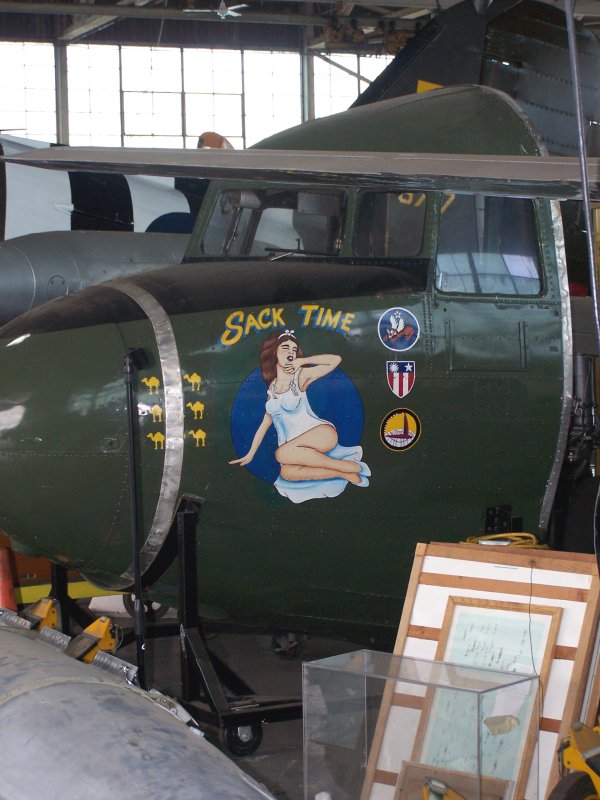

A C-47 nose adorned with a tribute to a subject very dear to the combat airman's heart.... that's right; sleep.
Unfortunately, I could not get around to the back to get a pic of one of my favorite flight decks, so familiar to me now from many happy hours in FS9.
Did I mention I love those Gooneys?

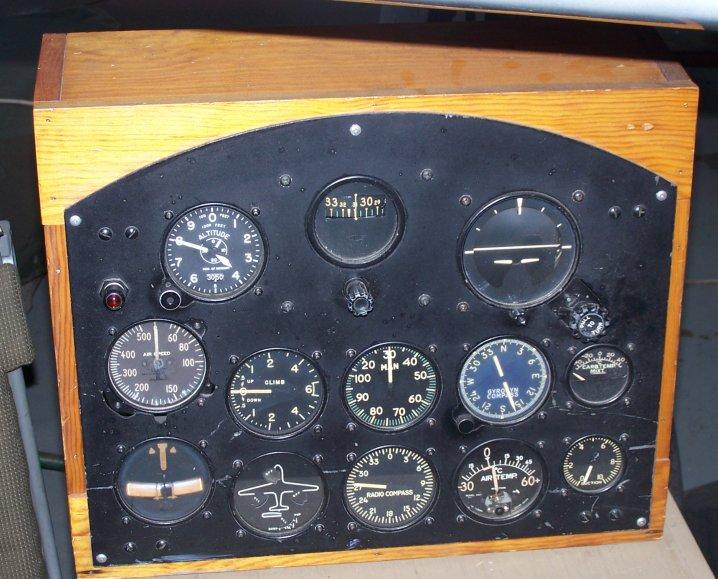

A random hunk of sim hardware... hmmm, where's the USB cable...?

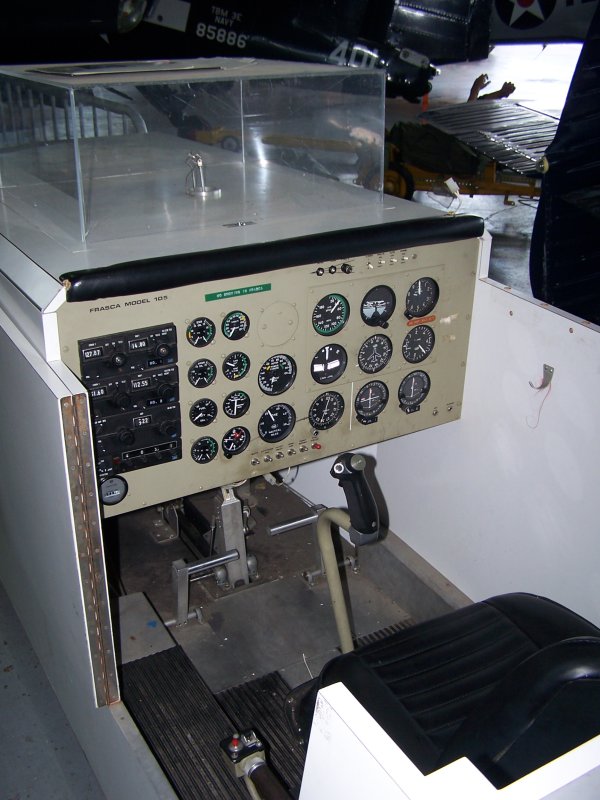

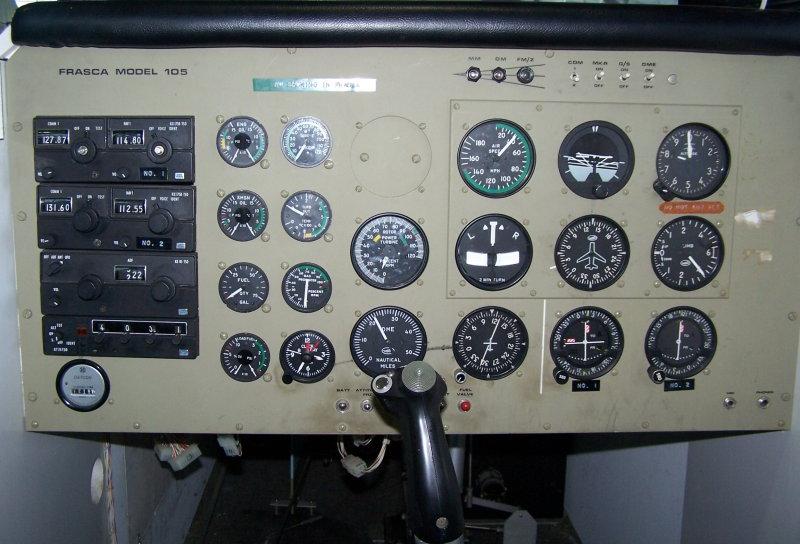

A more contemporary bit of hardware: a Frasca helicopter simulator.

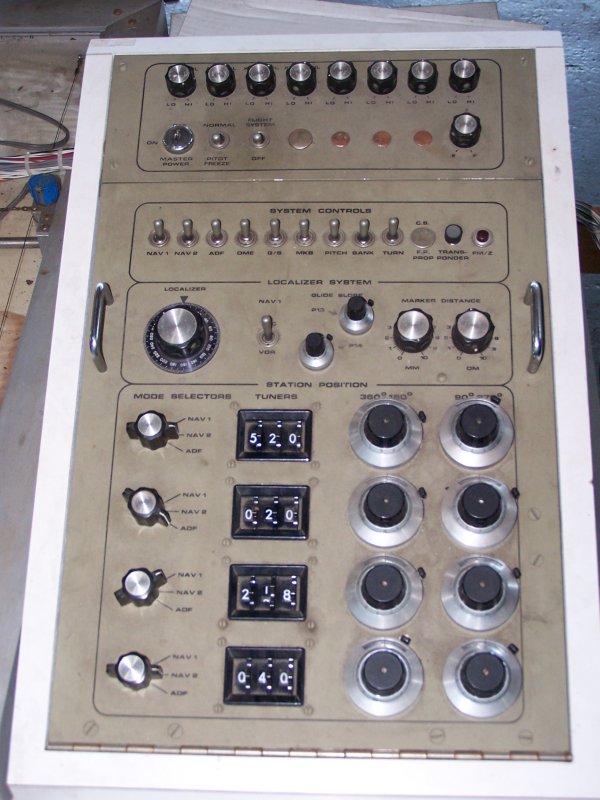

I think this is part of the instructor's station for the Frasca...




Next: sims, cockpits part 2

[ozzy72]

I wonder if John has spotted these yet..... he'll want them all

[SkyNoz]

They look pretty much like orientation cockpits, like understanding instrument layout etc. They bug me not being able to see simulated terrain etc. -nice pic's!

[beaky]

They look pretty much like orientation cockpits, like understanding instrument layout etc. They bug me not being able to see simulated terrain etc. -nice pic's!

The wooden box, maybe, but the Frasca is a full-on (IFR?) simuator. There's even an old plotting table, but it was under a cloth.
Not positive, but it's possible that there was a small model of a helicopter mounted under that plexiglass box, to show the sim pilot the results of his control inputs. I'll ask next time I"m there.

[SkyNoz]

The wooden box, maybe, but the Frasca is a full-on (IFR?) simuator. There's even an old plotting table, but it was under a cloth.
Not positive, but it's possible that there was a small model of a helicopter mounted under that plexiglass box, to show the sim pilot the results of his control inputs. I'll ask next time I"m there.

Oh that makes sense, a model would represent perfectly fine the visual flight dynamics and control input's.

[beaky]

Oh that makes sense, a model would represent perfectly fine the visual flight dynamics and control input's.

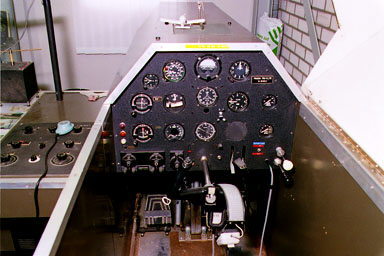

found this picture of a different old-type Frasca sim... looks like I was right. Same mechanism, with a little model hanging off it just left of center:
