Correcting for wind when flying a VOR

Forum dedicated to Microsoft FS2004 - "A Century of Flight".

Correcting for wind when flying a VOR

Postby Wing Nut » Wed Sep 01, 2004 9:15 am

Can someone explaing the best way to do this?  I keep trying to compensate by adjusting my course into the wind, but I still keep getting blown off of the radial...  ::) :P

Kevin
[img]http://www.simviation.com/phpupload/uploads/1440377488.jpg[/img]
User avatar
Wing Nut
Colonel
Colonel

Posts: 12720
Joined: Tue Jan 01, 2002 6:25 am

Re: Correcting for wind when flying a VOR

Postby garymbuska » Wed Sep 01, 2004 9:33 am

You are doing nothing wrong.
Without using a flight plan & using gps & nav hold options you will have to make adjustments in your heading for wind.You can even use your rudder and alieron trim tabs that is what they are there for.
After taking off one should try to trim up the aircraft so it will fly hands off without changing altitude or direction.
Like landing with a crosswind you have to crab in order to maintain the propper direction. If you are rusty are not sure how to do this then take some of the lessons it will help alot and explain what you are trying to do. 8)
I watched a learning to fly segment last night on just this subject It is on the wings channel
Gary M Buska
SYSTEM Specs ASUS P8Z68 V/GEN 3 mother board: INTELL I7 2600k 3.48 ghz Quad core CPU with Sandy bridge: 12 Gigs of 1800hz ram:
GTX 950 OVER CLOCKED: 2 Gigs Ram Windows 10 Home 64 bit Operating system. 750W Dedicated modular power supply. Two Internal 1TB hard drives 1 External 1TB 3.2 USB hard drive. SAITEK Cessna flight Yoke with throttles.
CH Rudder Peddles 27 inch Wide screen Monitor
User avatar
garymbuska
Major
Major

Posts: 4415
Joined: Tue Dec 30, 2003 11:10 am
Location: Jacksonville, Florida

Re: Correcting for wind when flying a VOR

Postby codered » Wed Sep 01, 2004 10:25 am

I watched "Learning to Fly" on the Wings channel last night for the first time, myself.  I already know how to fly, but it is great to get a refresher every now and then.  Pretty good show, I recomend it to anyone wanting to learn to fly or brush up on the basics. ;D

Dread Pirate, you are doing the right thing by correcting into the wind to hold your course.  If you find you are contantly having to correct to track your course, then make small adjustments to hold that course. You will notice that if you have the autopilot on the aircraft makes corrections to maintain that course.  You might be tracking 270, but you will have to have the nose pointed at 272 or 268 or whatever will keep the aircraft traveling along the 270 course. ;D
Windows XP SP1
Motherboard: Epox 8RDA + main board
Processor: AMD XP2500 Barton CPU
Memory: PC2700 1gb Geil DDR
Hard Drive: SEA HDD IDE 40GB 7M 40GPP
Hard Drive: Western Digital 40gb 8mb cache
Monitor 15 LCD Flat Panel Displa
codered
Major
Major

Posts: 1620
Joined: Thu Jun 06, 2002 1:09 am

Re: Correcting for wind when flying a VOR

Postby Skittles » Wed Sep 01, 2004 12:39 pm

Here's what we do in the Navy to correct for set and drift

Keep in mind, course and heading are two different things.

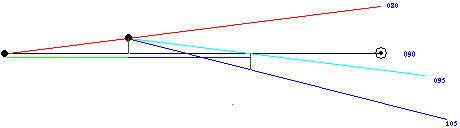

The Black line is your intended course.

The Red line is the Actual course

The SET is the DIRECTION of offset. The DRIFT is the SPEED. If you actually calculate the Set and Drift, you will find it is the same as the wind direction and speed. So we don't need to calc that.

The light green line shows our distance of ADVANCE the dark green line going to our location is the TRANSFER.
Double the ADVANCE. This gives CORRECTING HEADING which will provide a COURSE of 090.

Doubling the ADVANCE AND TRANSFER will provide a COMPENSATING HEADING which will provide a HEADING to get you back on track. Once on track, fly the CORRECTING HEADING.

Doing this whole mess of geometry in the air, and on charts, is difficult, but possible.
Last edited by Skittles on Wed Sep 01, 2004 1:16 pm, edited 1 time in total.
What do computers and air conditioners have in common?Image
They both will work perfectly, until you open windows.
User avatar
Skittles
Captain
Captain

Posts: 824
Joined: Thu Mar 11, 2004 4:06 am
Location: JAQ: Westover Field, CA (O70)
